Deep Robotics M20 Pro Robot Bundle (DEP TY Lynx M20 Pro and DEP AC Lynx M20 Pro Dock)

Omni-Terrain Operations. Break the Boundaries.

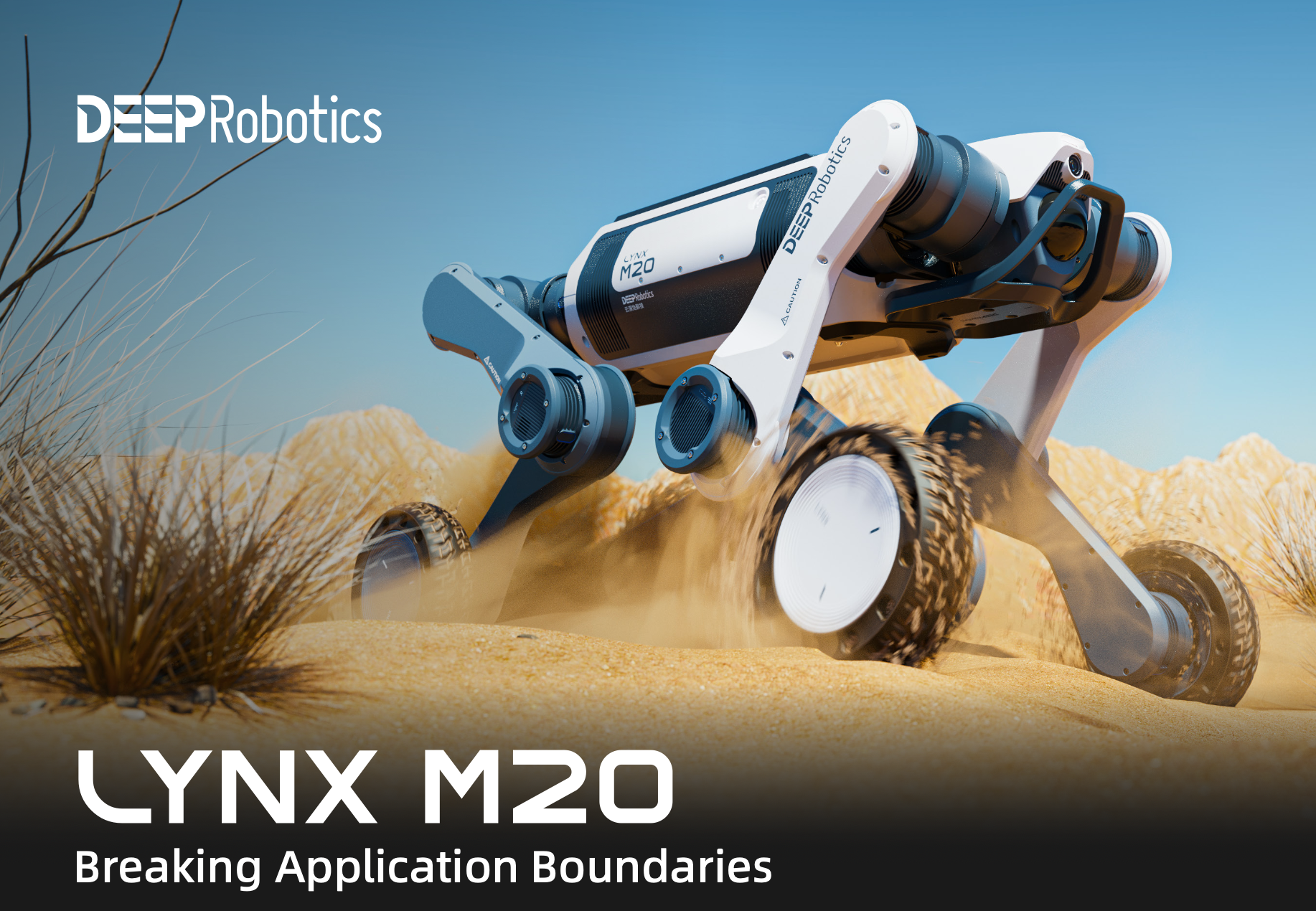

The LYNX M20 series represents the world's first wheeled-legged robot built specifically for challenging terrains and hazardous environments during industrial operation. Featuring lightweight design with extreme-environment endurance, it conquers rugged mountain trails, muddy wetlands and debris-strewn ruins—pioneering embodied intelligence in power inspection, emergency response, logistics, and scientific exploration.

• Lighter, Faster, Smarter the Industry-Grade Wheel-Legged Robot: The upgraded LYNX M20 fuses wheeled speed with legged agility. Its mid-size form balances narrow-space mobility (50cm clearance) and payload-endurance synergy, meeting harsh industrial demands.

• Omni-Terrain Mastery Adapts to Extreme Environments: As an industrial-grade intelligent platform, LYNX M20 autonomously perceives terrain and adjusts gait. With omnidirectional obstacle avoidance, it dominates mountains, wetlands, and rubble—redefining mobility in high-risk zones.

Compact & Adaptive
• Expands Application Horizons: At just 33kg, it’s portable by a single operator. Featuring hyper-flexible joints and seamless leg-mode switching (e.g., "front-elbow/rear-knee"), it climbs 25cm stairs, traverses tunnels/pipelines, and bridges gaps between manual labor and heavy machinery.

• Hardcore Protection Extreme Environment Ready: IP66-rated and operational from -20°C to 55°C. Equipped with 96-line LiDAR, bidirectional lighting for darkness, and hot-swappable batteries. Engineered for high-risk, it’s your failsafe partner.

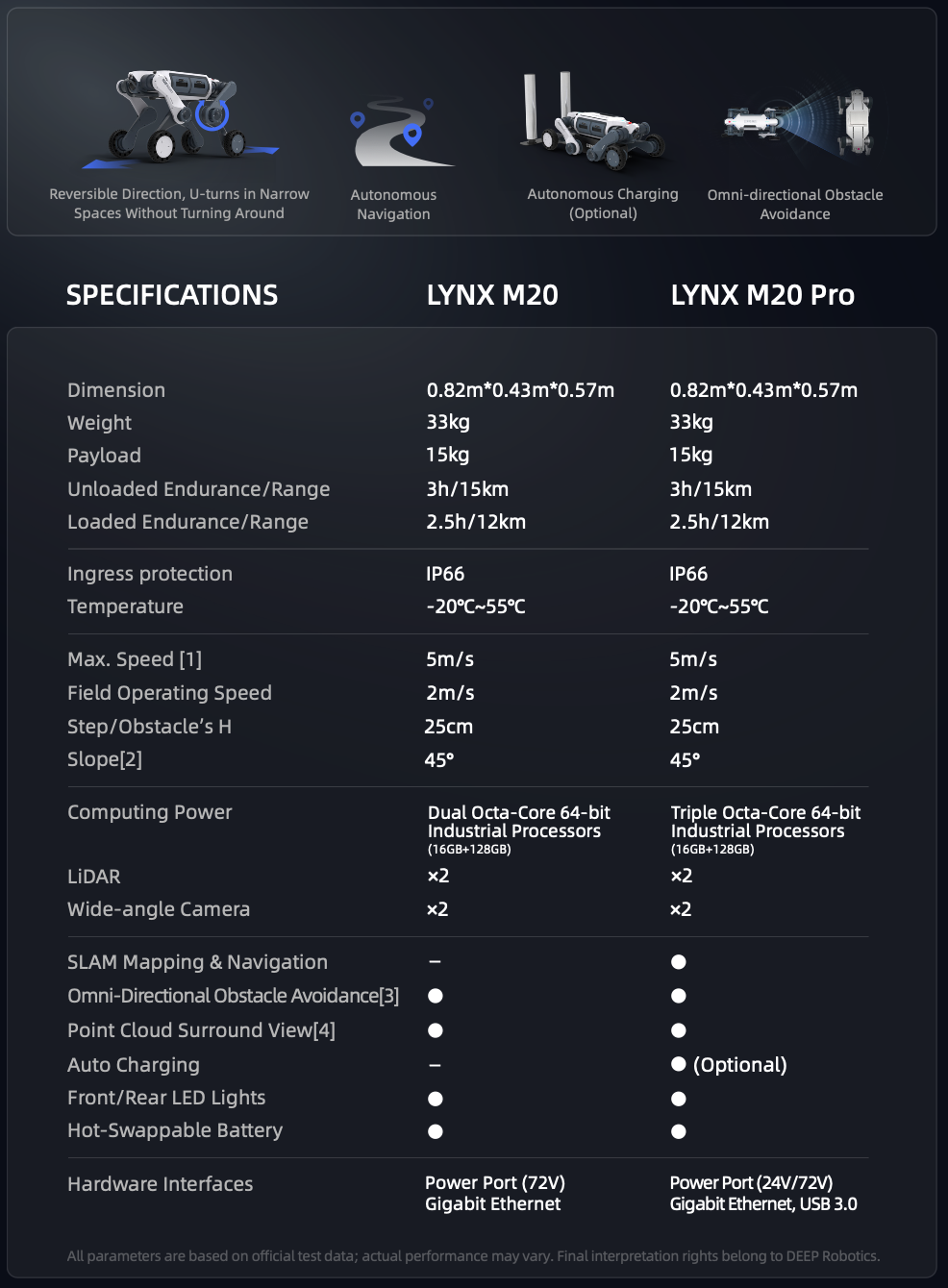

General Parameters

Payload Capacity:
15kg

Max. Load Capacity:
50kg

Unloaded Endurance/Range:
3h/15km

Loaded Endurance/Range (15kg):
2.5h/12km

Charging Time (Single Battery):
1.5h

Mobility Performance
Lab-Tested Max. Speed^note1:
5m/s

Operating Max. Speed:
2m/s

Max. Continuous Stair Height:
25cm

Max. Single-Step Height:
80cm

Max. Slope^note2 :
45^o

Hardware Configuration
Computing Power:
Dual octa-core 64-bit industrial processors (16GB+128GB) x2
LiDAR x2 (96line, 360^ox90^o, to 860000pts/s)
Wide-Angle Cameras x2

Environmental Adaptability
Protection Rating:
IP66

Operating Temperature
-20^oC to 55^oC

Functional Features
Omnidirectional obstacle avoidance^note3
Point cloud surround view^note4
Front/rear bidirectional lighting
RF image transmission
OTA upgrades

External Interfaces
Electrical Ports:
72V power input, Gigabit Ethernet

Note:
1. Lab-tested extreme speed, safety-limited to 3m/s in user mode.
2. Lab-tested slope angle, actual performance varies by surface material.
3.4. Feature enabled via future OTA update.

Item Dimension (L inch x W inch x H inch)
37 x 25 x 19

Weight
130.00lb

Warranty Information
12 months supported by Deep Robotics Official After-sales Center in California
