Vertical axis : Contrast
Horizontal axis : Distance from the center of the image
S : Sagittal
M : Meridional
Distance from the center of the image
Distance from the center of the image

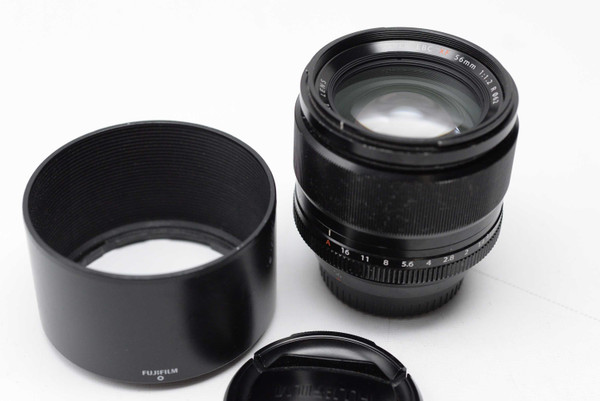

| Type | FUJINON XF56ｍｍF1.2 R WR | ||
| Lens configuration | 13 elements in 8 groups (includes 2 aspherical and 1 ED elements) |
||
| Focal length | f=56mm(85mm) | ||
| Angle of view | 28.5° | ||
| Max. aperture | F1.2 | ||
| Min. aperture | F16 | ||
| Aperture control | Number of blades | 11(rounded diaphragm opening) | |
| |
Step size | 1/3EV (23steps,1/2EV for last stop to maximum aperture only) | |
| Minimum focus distance(measured from focal plane) | 0.5m | ||
| Max. magnification | 0.14x | ||
| External dimensions : Diameter x Length*1 (approx.) | Ø79.4mm×76mm | ||
| Weight*2 (approx.) | 445g | ||
| Filter size | Ø67mm | ||
| Accessories included | Front lens cap FLCP-67 II Rear lens cap RLCP-001 Lens hood Lens wrapping cloth |
||
*1 distance from camera lens mount flange
*2 excluding caps and hoods
