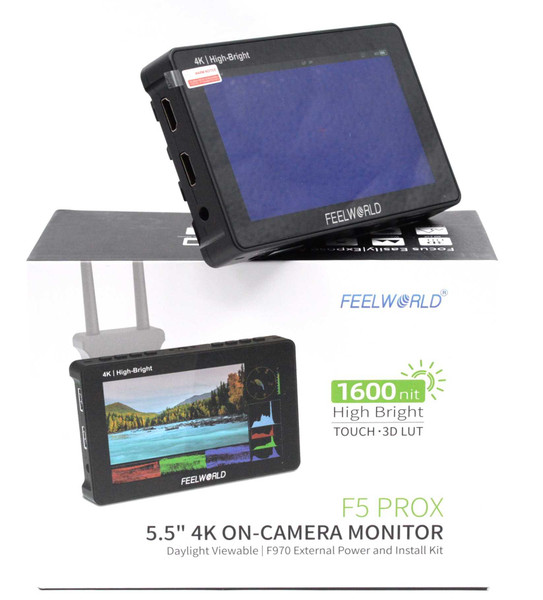

The Feelworld F5 PROX 5.5" HDMI Touchscreen Monitor is a compact, high-brightness on-camera field monitor designed for filmmakers and content creators who need accurate exposure and color tools in an outdoor-friendly package.
Key Technical Specifications
- Display: 5.5-inch IPS Touchscreen with a native 1920x1080 resolution and 16:9 aspect ratio.
- Brightness: 1600 nits, making it daylight-viewable and resistant to glare under direct sunlight.
- Contrast Ratio: 1000:1.
- Video Connectivity: 1x 4K HDMI Input, 1x 4K HDMI Loop Output. It supports passthrough up to DCI 4K at 24fps and UHD 4K at 30fps.
- Weight: Ultra-lightweight at 240 grams (0.53 lbs), ideal for gimbal use.
Professional Software Tools
- 3D LUT Support: Features 4 built-in Log-to-Rec.709 profiles and allows you to load up to 32 custom .cube LUT files using a USB-C adapter or SD card depending on the specific bundle.
- Exposure & Focus Assist: Includes full-waveform monitoring (RGB, YUV, and Y Parade), vector scope, histogram, false color, zebra exposure, anamorphic de-squeeze, and focus peaking.
Power & Mounting Versatility
- Triple Power Input: Can be powered via a standard Sony L-Series battery (NP-F550/750/970), a 12V DC barrel jack, or a 5V USB-C input from portable power banks.
- Camera Auxiliary Power: Features an 8.4V DC output jack to supply dummy battery power directly back to your mirrorless or DSLR camera.
- F970 External Install Plate: A unique bracket built into the back of the monitor allows you to mount and power external accessories directly from the monitor's battery plate, such as wireless video transmitters or LED lights.
