Carbon Infinity 4x5 Camera

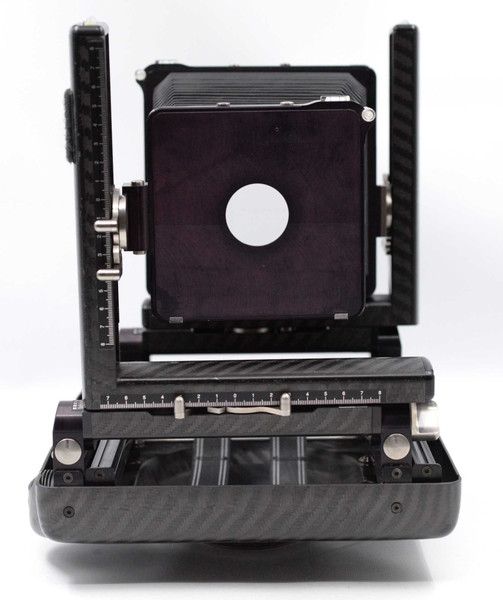

Pre-Owned - Carbon Infinity 4x5 Field Camera Serial # 050
100-Day Warranty Condition
The Carbon Infinity 4x5 is an ultra-rare, high-performance large format field and technical view camera. Designed in the UK by Angus Noble and Adrian Thompson in the 1990s, fewer than 100 units were ever manufactured. It combines the rigid precision of a studio monorail with the compact, folding shell of a rugged field camera.
Design and Materials
- Composition: Built from roughly 85% carbon fiber, complemented by high-strength titanium and aluminum alloy fittings.
- Portability: Folds into its own rigid, clamshell carbon fiber base designed to protect the internal standards during transport.
- Rarity: Produced in Newton Abbot, Devon, by Carbon Infinity Ltd., making surviving models highly coveted collector's items that occasionally fetch thousands at specialty auctions.
Camera Movements and Capabilities
- Monorail Versatility: Offers extensive front and rear standard movements (rise, fall, shift, tilt, and swing) typically restricted to heavy studio rails.
- Rigidity: Extremely durable framework that resists flexing under harsh field conditions while remaining relatively lightweight for a full-featured technical 4x5.
Technical Specifications
- Movements: Carbon Infinity commands virtually unlimited movement, exceptional range and smooth operation, totally yaw-free (as previously indicated), exceeding those of any other studio-based camera, let alone a foldable field camera.
- Ease of use: Folds easily into its own carbon fiber case, virtually indestructible.
- Quick and easy to set up, unique configuration with helpful scales and six spirit levels, one at the top of each standard and two each on the front and rear frames.
- All controls ergonomically positioned for manual, quick, and easy adjustment.
- Lens and bellows changes with a simple snap-in locking system.
- 135mm, 150mm, or even 210mm lenses can be kept in the camera case when folded.
- Absolutely corrosion-free, durable, and lightweight.
- Base tilt, axial tilts, swing, and shifts on both standards exceed virtually all other cameras and lock securely with titanium clutches. Axial swings and tilts on the film plane.
- Coarse and fine focusing on both front and rear standards are positive and lockable (quick push-button).
- Lens tilts on the technically correct nodal point of any lens.
- Nodal point adjustment: 18mm.
- Total rise and fall: 100mm.
- Base tilt: 180º.
- Axial swings and tilts: 360º.
- Quick and simple ground-glass screen removable and international back (Graflock system) designed to take most accessories.
- Exceptional bellows maximum extension: 540mm, allows the use of a 300mm lens with standard bellows.
- Standard bellows extension: 30-540mm.
- Exceptional wide-angle capability gives a high degree of movement even with extremely wide-angle lenses (58mm), 30mm minimum distance between film plane and lensboard.
- Focusing rails run smoothly on precision rail bearings.
- Carbon fiber is three times stronger than steel and 40% lighter than aluminum.
- Titanium and carbon fiber are unaffected by sand or even salt water, totally stable over an extremely wide range of the roughest thermal environments, such as deserts or arctic conditions.
