Description

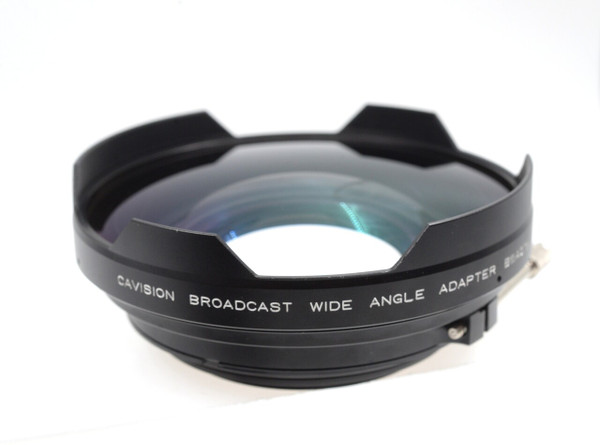

Pre-Owned - Cavision 0.7x Wide Angle Adapter
Key Features:
Provides a 30% wider angle of view
Can be used with 117 clamp-on rings for different lens sizes
Can be used on Fujinon 13x4.5 lens (2/3") to create super wide angle equivalent to ~ 3.5mm and an MOD of 0 (note: must be zoomed in slightly for use)
Specifications:
Class: Broadcast
Effect: 0.7X
Suitable lens: 117mm filter thread lens. Or lenses with front outside diameter of: ø114mm (CR117-114), ø110mm (CR117-110), ø100mm (CR117-100) with optional clamp-on ring indicated in brackets. Or various front outside diameter sizes below 100mm with CR117-100 plus ARP4 series adapter rings (e.g. ARP498 for 98m, ARP496 for 96mm, ARP495 for 95mm etc.)
Suitable Focal Length: 2/3": 4.5mm and up
Coating: Multi-coated
Zooming: Fixed focal
Focus: By macro mechanism
Aperture: No light loss
MOD: 0.20m (0 MOD when used on Fujinon 13x4.5 lens)
Angle of view: 76°19' X 61°01' at 8mm
Format: 2/3" TV
Back thread: ø117mm P=0.8
Construction: Single element
Dimensions: ø130mm X 23.5mm(h)
Net weight: 353g
Finishing color: Black
