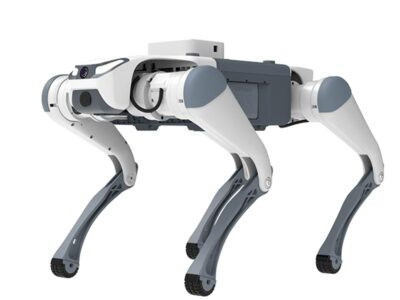

Deep Robotics DEP TY Lite 3 Venture Robot

Extraordinary locomotion. Modify with your imagination
The Lite 3 bionic robot is an advanced robot dog that features a higher driving force, a far more advanced and accurate algorithm, enhanced environmental interaction, and a wide selection of expansions with additional applicable modules.

• Driving force: 50% joint torque increased, extremely high torque density, response bandwidth, and reversed transmission efficiency.

• Algorithm: More agile and responsive; stronger sumo ability and greater maneuverability.

• Interaction: Enhance the real-time image transmission performance of the first-person view, and reduce latency.
Expansion: Additional applicable module design for unlimited modifications.

Motion
Walking Load:
4.5kg

Slope:
40^o

Stair:
18cm

Perception Functions:
Front/Rear Obstacle Stop, Visual Following

Battery
Endurance:
1.5h to 2h

Mileage:
4km

Software/Hardware
Hardware Interfaces:
Ethernet x 2, External Power Input (24V/12V/5V)

Secondary Development:
Provide models, motion control SDK and APIs, as well as perception development interfaces with sample code.

Item Dimension (L inch x W inch x H inch)
26 x 15 x 20

Weight
57.00lb

Warranty Information
12 Months Supported by Deep Robotics Official After-sales Center in California
