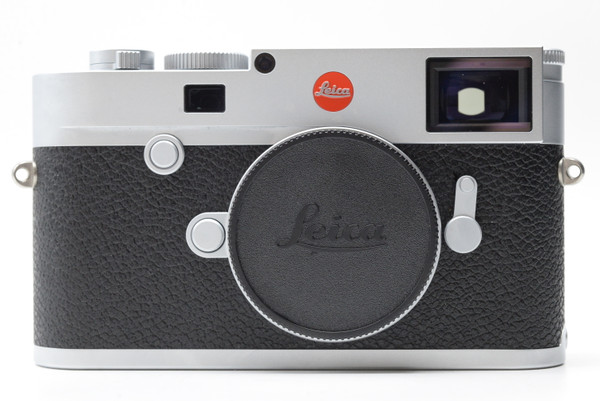

Leica M10-R Overview
Putting the 'R' in resolution, the Leica M10-R is a digital rangefinder camera with a high-resolution take on the traditional, stills-only design of the acclaimed M10-series. Revolving around an impressive 40MP full-frame CMOS sensor and Maestro II image processor, the M10-R is distinguished by its image quality, dynamic range, and sensitivity, with an ISO 100-50000 range and low noise. Complementing the applications suited to a higher resolution design, the M10-R also features an extended shutter speed range for making long exposures up to 16 minutes-long for nighttime and low-light shooting. The increased resolution and redesigned sensor structure also highlight the unique optical qualities of Leica's extensive lens lineup.
Beyond the updated sensor, the M10-R takes on a familiar form with a slim body profile that is reminiscent of M film cameras, and a large 0.73x-magnification optical viewfinder for notable composition and focusing accuracy. The body design also incorporates a dedicated ISO dial for quick adjustment, even when the camera is turned off, and the rear 3.0" 1.04m-dot touchscreen LCD features a Gorilla Glass cover to guard against scratching and light impacts. Also contributing to durability, the top and bottom plates are constructed from brass and the chassis is built from magnesium alloy to realize a robust physical construction for long-lasting use. Additionally, the M10-R also sports an integrated Wi-Fi module for wireless sharing and remote camera control from a linked mobile device.
M10-R for Resolution
Revolving around a unique 40MP full-frame CMOS sensor, the M-10R distinguishes itself within the M10 family of cameras by its high resolution and longer exposure capabilities. Beyond traditional Leica applications of street and reportage shooting, these capabilities lend themselves to landscape and nature shooters, as well, and also enable photographers to make full use of the exceptional Leica lens lineup. Aside from the revised sensor design, the M10-R retains its slim form factor, ultra quiet operation, and svelte design, which includes a characteristic red dot on the front of the camera, a plain top plate, and an elegant silver chrome finish.
A redeveloped full-frame color 40.89MP CMOS sensor pairs with the Maestro II image processor to deliver an impressively wide dynamic range with notable color saturation and contrast, as well as enhanced sensitivity from ISO 100-50000 to suit working in a variety of lighting conditions. The sensor's design also omits an optical low-pass filter in order to achieve greater sharpness and resolution.
The optical viewfinder is a large, bright-line 0.73x-magnification rangefinder with automatic parallax compensation and bright-line frame lines, which are set to match the image sensor size at a focusing distance of 6.6'. On the front of the camera, a viewfinder frame selector can also be used to manually change the apparent image field to help visualize the scene with varying focal lengths; options are available in 35mm/135mm, 28mm/90mm, and 50mm/75mm focal length pairs.
The rangefinder mechanism displays split or superimposed bright field images within the center of the viewfinder to benefit accurate manual focusing control. The effective rangefinder metering basis is 50.6mm (mechanical metering basis 69.31mm x viewfinder magnification of 0.73x).
Other Camera Features
