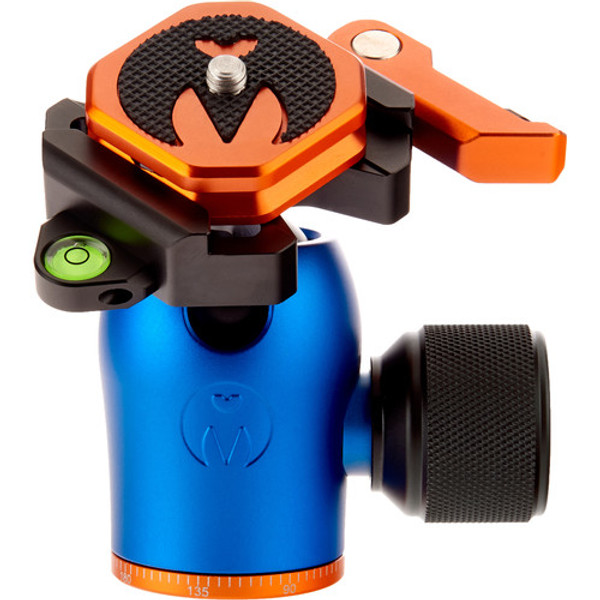

The blue AirHed Pro Lever Ball Head from 3 Legged Thing is an Arca-type ball head with a load capacity of 88.0 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the included QR-OCTA Quick Release Plate. The quick release plate can be attached or removed from the integrated clamp located at the top of the head's ball-and-socket joint by using the clamp's push-and-pull cam lock lever. When opened, the lever can be rotated and flipped over so that when used to lock the clamp, the direction of the lever's motion best suits either a right- or left-handed user.
Dual retaining screws are included for use along the underside of the plate. These screws prevent the plate from accidentally sliding off the ball head when the clamp is opened. The quick release plate features a rubberized, non-slip platform while a built-in bubble level along the edge of the clamp opposite the cam lock lever accommodates landscape orientations.
By loosening the ball head's primary locking knob, the head's ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. Under the primary locking knob is a secondary locking knob, which controls the ability to rotate the head 360°.
Arca-type ball head with 88 lb load capacity
Compatible with tripods or support systems that feature a 3/8"-16 mount
Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
Large primary locking knob with knurled surface allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
Secondary locking knob with knurled surface allows head to rotate 360°
Integrated clamp on top of on the ball-and-socket joint is compatible with included QR-OCTA Quick Release Plate
Push-and-pull cam lock lever to secure compatible Arca-type quick release plates within the integrated clamp
When opened, cam lock lever can be rotated and flipped over so that when used to lock the clamp, the direction of the lever's motion best suits either a right or left-handed user
Built-in bubble level along the edge of the clamp opposite the cam lock lever accommodates landscape orientations
Durable magnesium alloy construction
Compatible with Arca-type quick release clamps
1/4"-20 mount
Dual retaining screws along the underside of the plate prevent the plate from accidentally sliding off the AirHed Pro Lever Ball Head
Durable, aluminum alloy construction
